In gold mining's Carbon-in-Leach (CIL) and Carbon-in-Pulp (CIP) processes, efficient solid-liquid separation forms the bedrock for achieving high recovery rates and economic returns. As a manufacturer with years of deep expertise in industrial screening, we fundamentally understand that the performance of a single core component often dictates the stability and efficiency of the entire process chain. Today, from a producer's professional perspective, we aim to elucidate the irreplaceable, critical role of the Johnson Screen (commonly referred to as Wedge Wire Screen) within CIL/CIP circuits.

Process Challenges & Core Requirements: Why Conventional Screens Fall Short

The separation of gold-loaded activated carbon from slurry within the CIL/CIP adsorption circuit presents harsh challenges: severe blinding from fine slimes, rapid wear of screen surfaces by highly abrasive slurry, and material loss—of either carbon or gold-bearing fines—due to insufficient separation accuracy. These issues not only cause frequent shutdowns for cleaning but directly erode gold recovery and production profits.

Traditional perforated plates or woven mesh screens often become production bottlenecks under such conditions due to structural limitations. This is precisely where the specialized Johnson Screen—essentially an engineered Wedge Wire Screen system—steps in to play a decisive role. Our design philosophy has always been to target these exact process pain points.

The Five Core Functional Mechanisms of the Johnson Screen / Wedge Wire Screen.

1. The Superior Anti-Clogging Guarantor
The core of the Johnson Screen lies in its unique V-shaped profile wires and continuous longitudinal slots. This structure creates a uniformly narrowing flow channel from top to bottom, where particles make line contact with the slot edge, drastically reducing attachment points. As slurry flows, fine particles are more likely to slide out of the narrowing gap under gravity, achieving a continuous "self-cleaning" effect. This inherent resistance to blinding is the first line of defense in ensuring 72-hour or longer continuous, stable operation in CIP/CIL processes.

2. The Reliable Enforcer of Precision Separation

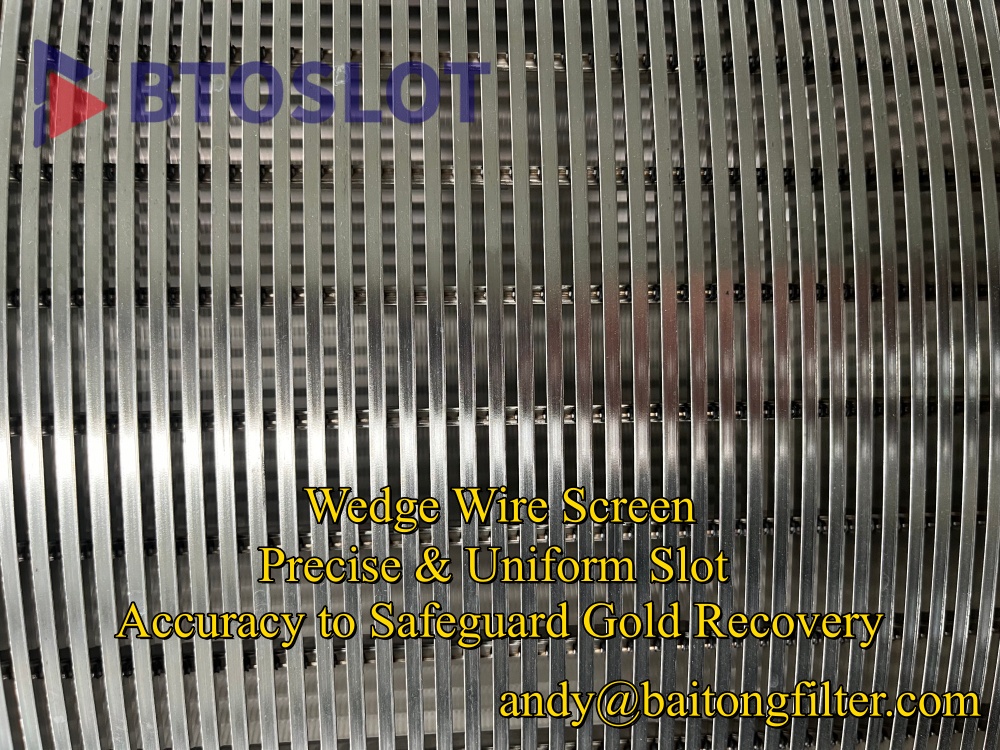

As an advanced form of Wedge Wire Screen, our manufactured Johnson Screens utilize precision tooling and automated welding to control slot width tolerance within ±0.05mm. This exceptional dimensional consistency means it can precisely retain activated carbon (typically 6-16 mesh) while allowing efficient passage of gold-bearing solution. This fundamentally minimizes accidental carbon loss or "short-circuiting" due to uneven slots, safeguarding the recovery path of every gram of gold.

3. The Long working life Against Wear
To combat the highly abrasive nature of gold ore slurry, we fabricate our Johnson Screens from premium materials like 316L stainless steel. The V-shaped wire profile itself acts like a miniature structural beam, providing mechanical strength and resistance to deformation far superior to round wires. This ensures remarkable stability of slot dimensions under long-term slurry flushing and carbon particle impact, offering a service life multiple times that of standard screens and significantly reducing our clients' spare part frequency and total operational costs.

4. The Enabler of High Throughput & System Optimization
The high effective open area (often exceeding 30%) and smooth surface of Johnson Screens provide a fluid passage for slurry. This directly increases the processing capacity of individual adsorption tanks or screening units, allowing plants to achieve higher throughput at the same scale or providing key support for process optimization and expansion.

5. Customized Solutions

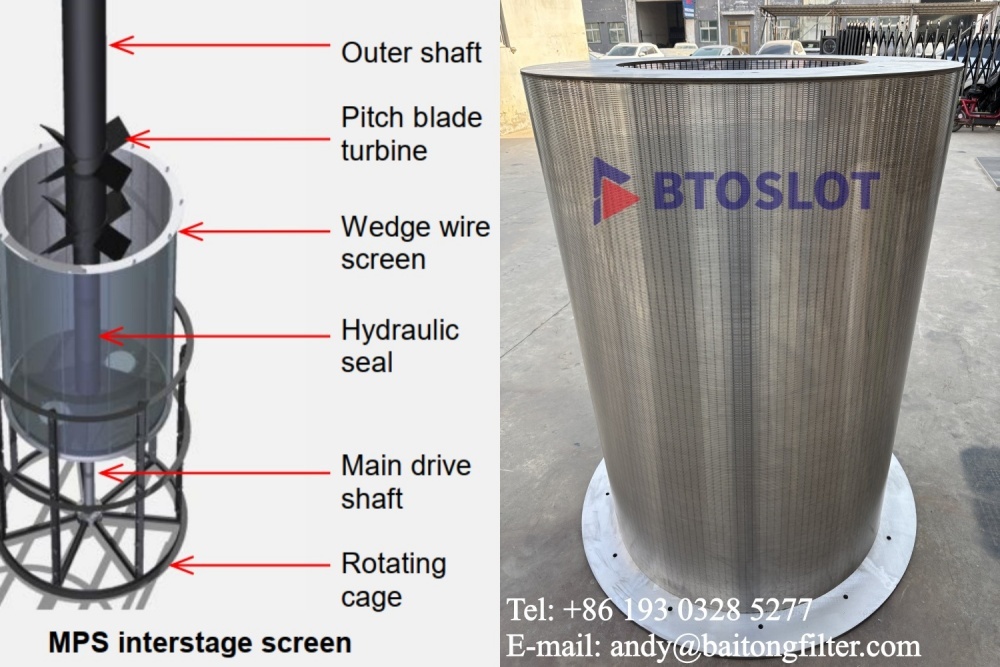

We know no two gold mining projects are identical. Therefore, our Johnson Screen products—from slot width, wire diameter, and material to overall structure (e.g., screen diameter, connection method)—can be deeply customized based on the client's specific slurry characteristics, activated carbon size, equipment interfaces, and spatial constraints. It is more than a standard part; it is a tailored solution embedded within the client's process flow.

Beyond a Component: Value as a Process Partner
From a producer's viewpoint, we provide more than a metal component called a Johnson Screen or Wedge Wire Screen. We deliver:

Stability: Reducing unplanned downtime to ensure production continuity.

Recovery Assurance: Maximizing activated carbon adsorption efficiency through precise separation, locking in gold value.

Total Cost Optimization: Lowering life cycle operational costs through extended service life and minimal maintenance.

Technical Collaboration: Offering full-cycle support from selection and installation to maintenance, based on a profound understanding of the process.

In summary, in the modern gold mining CIL/CIP process that pursues ultimate efficiency and recovery, a high-performance Johnson Screen has evolved from a simple filtering unit into a strategic component that enhances the performance of the entire adsorption circuit. Choosing it means choosing a reliable, efficient, and dedicated value-creation partner. We remain committed to leveraging precision manufacturing and professional knowledge to ensure that every screen we put into service becomes a solid foundation for our clients' process stability and profitability.
